Description

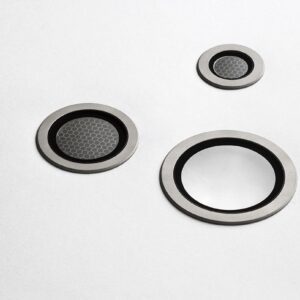

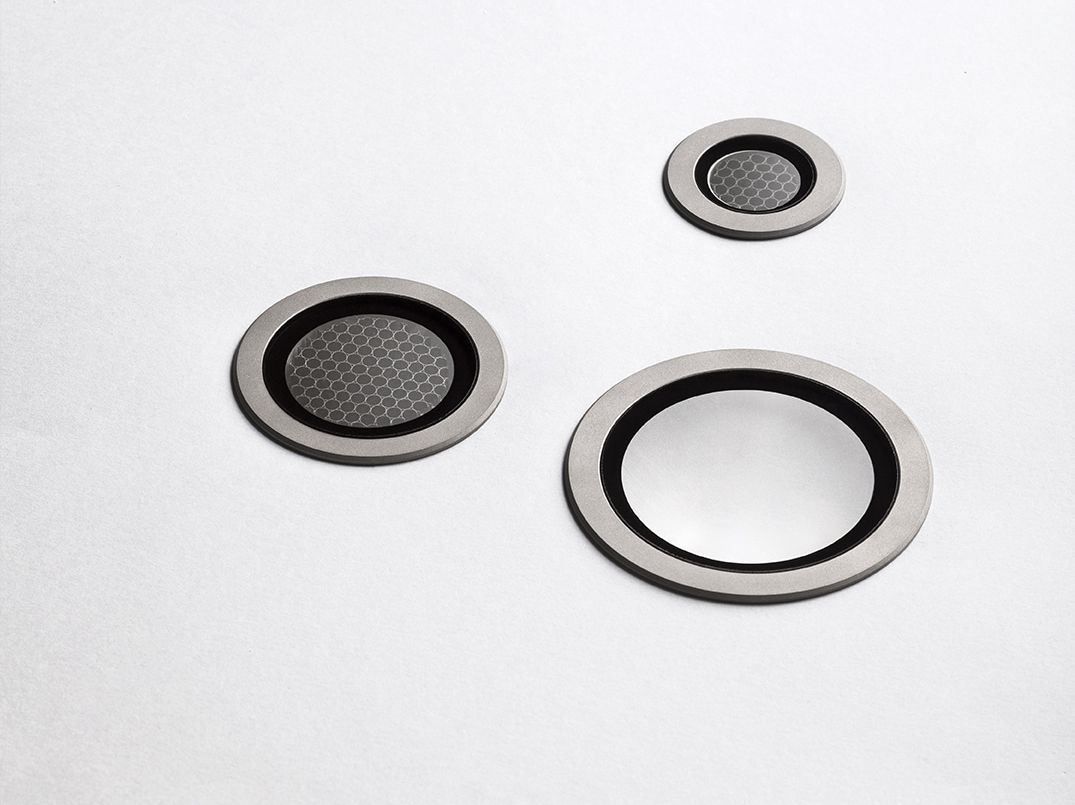

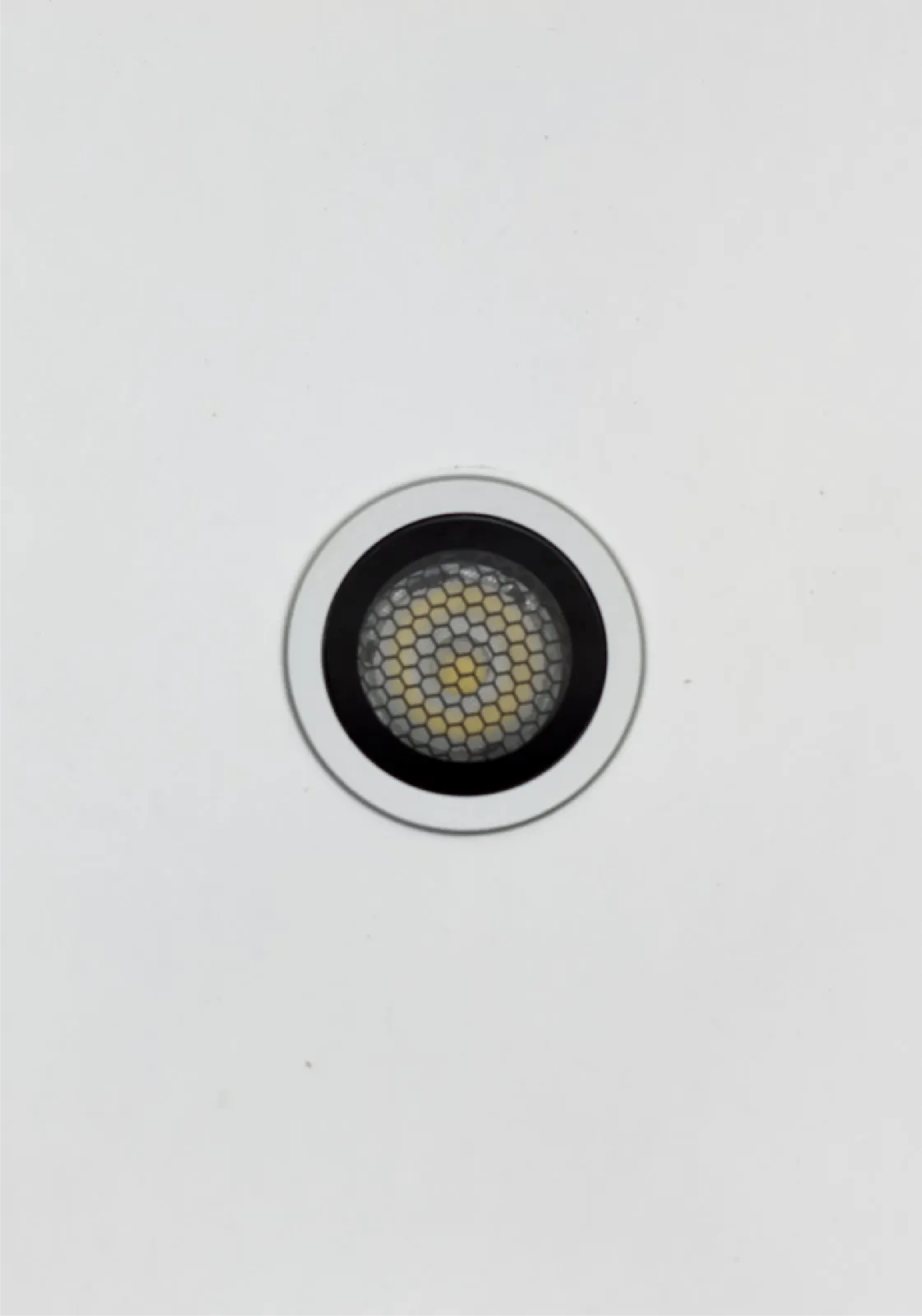

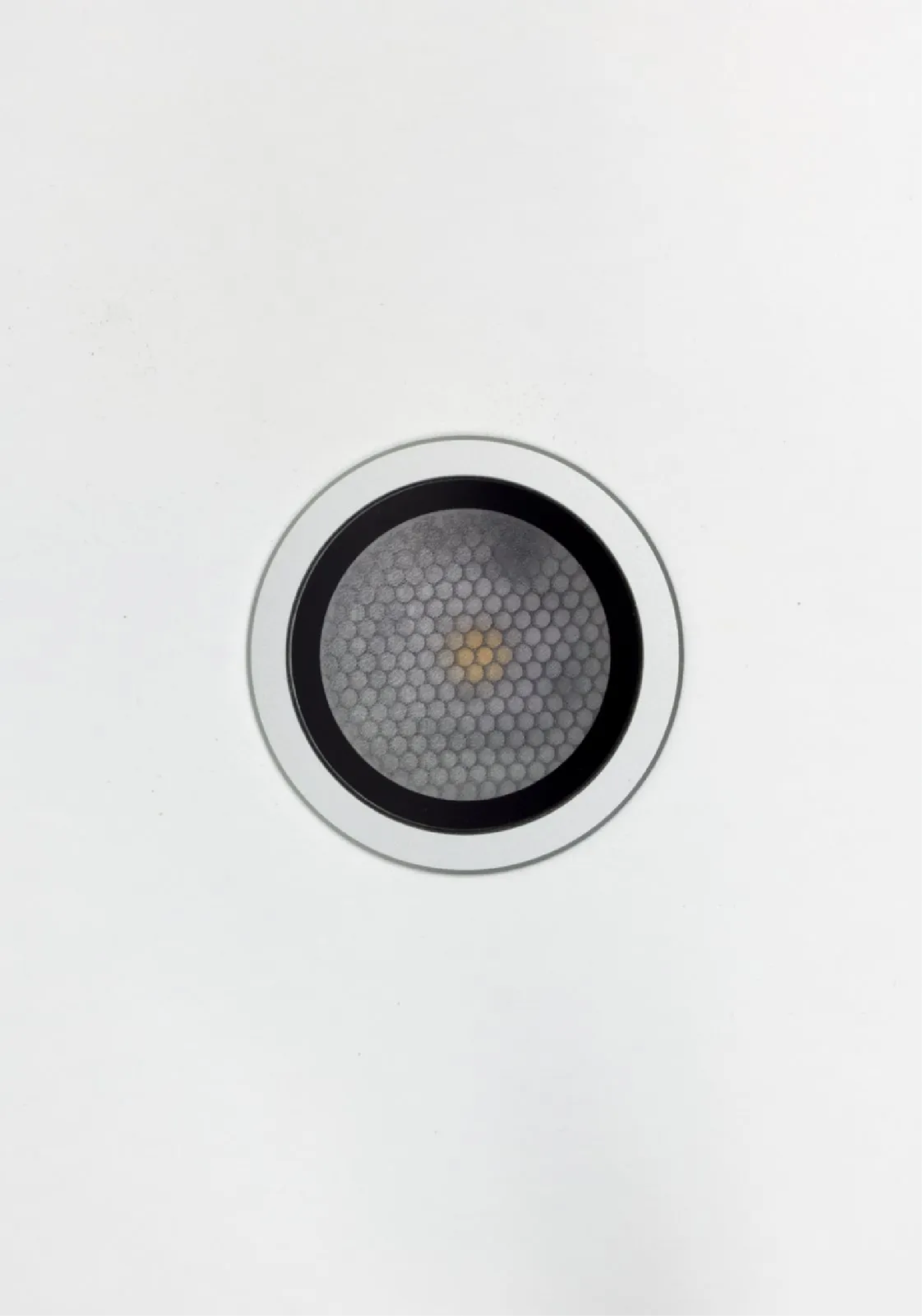

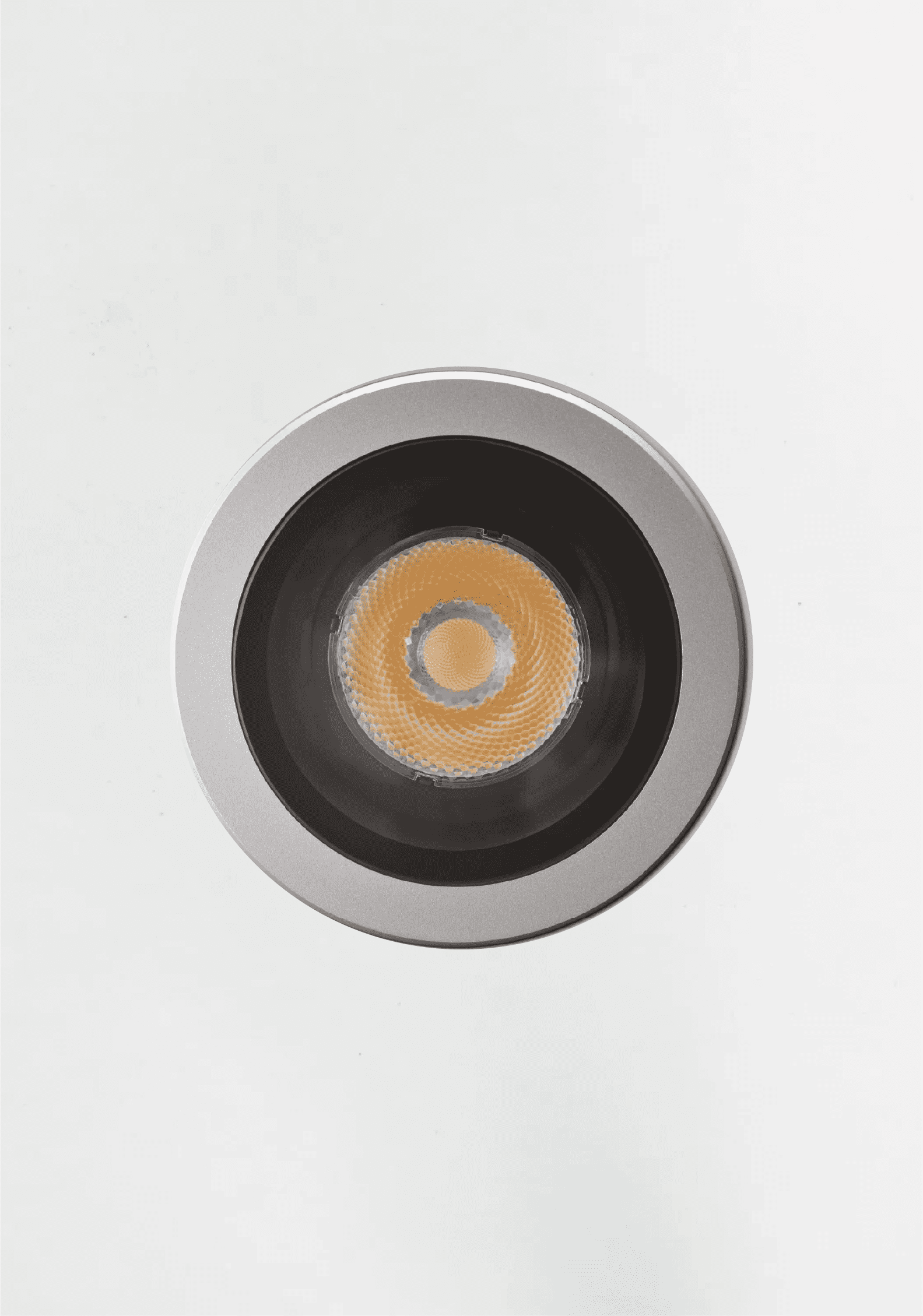

Ground recessed luminaire in three sizes. Anodized aluminium body with tempered, serigraph glass and aluminium honeycomb lens or diffused glass.
IP67.
Insulation CLASS III/ I for direct version.
3 sizes Ø45mm; Ø65mm; Ø85mm.
Emission 36° beam.
Equipped with Power LED 4chip/LED 230V 3000K.
Recessed box for installation to be separately ordered.

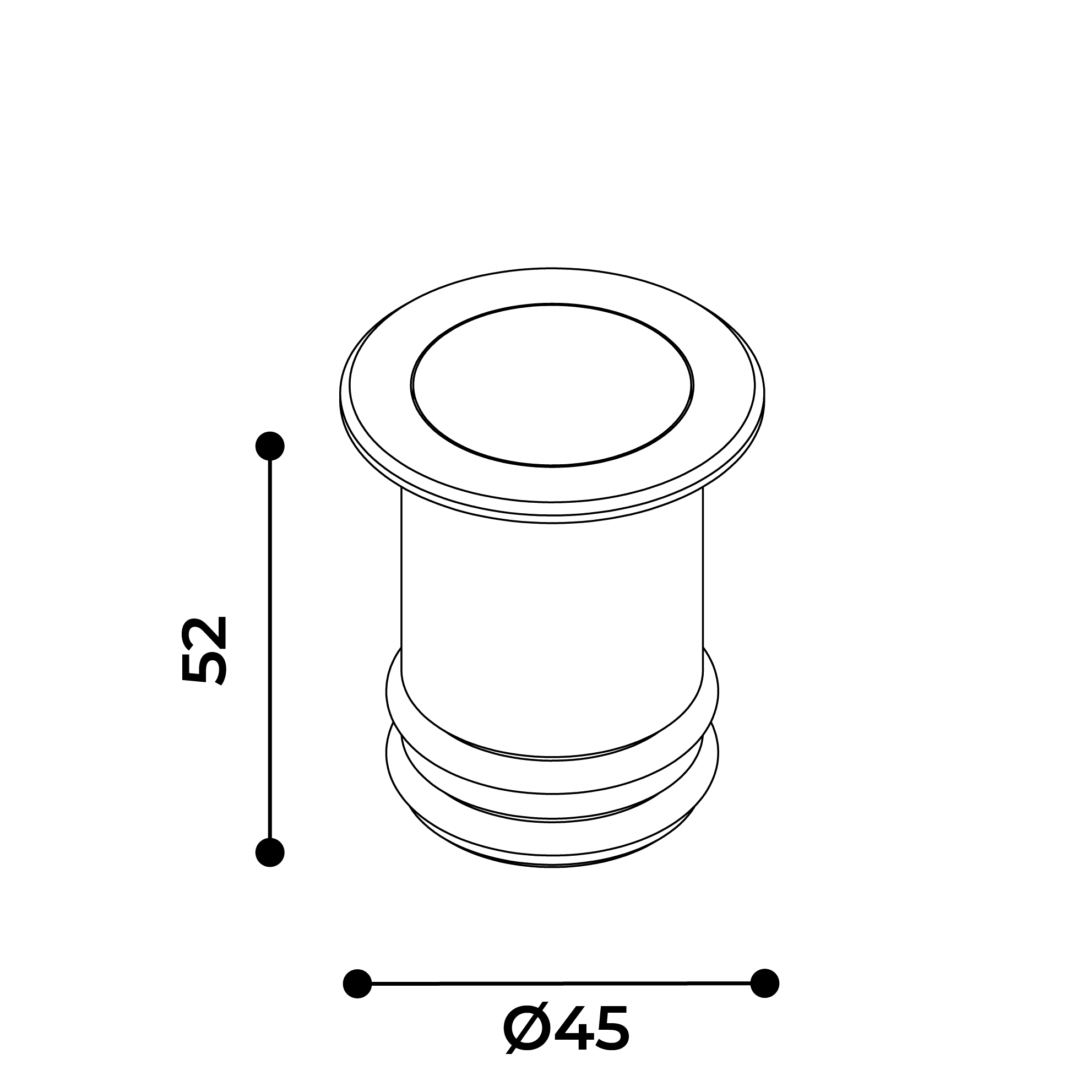

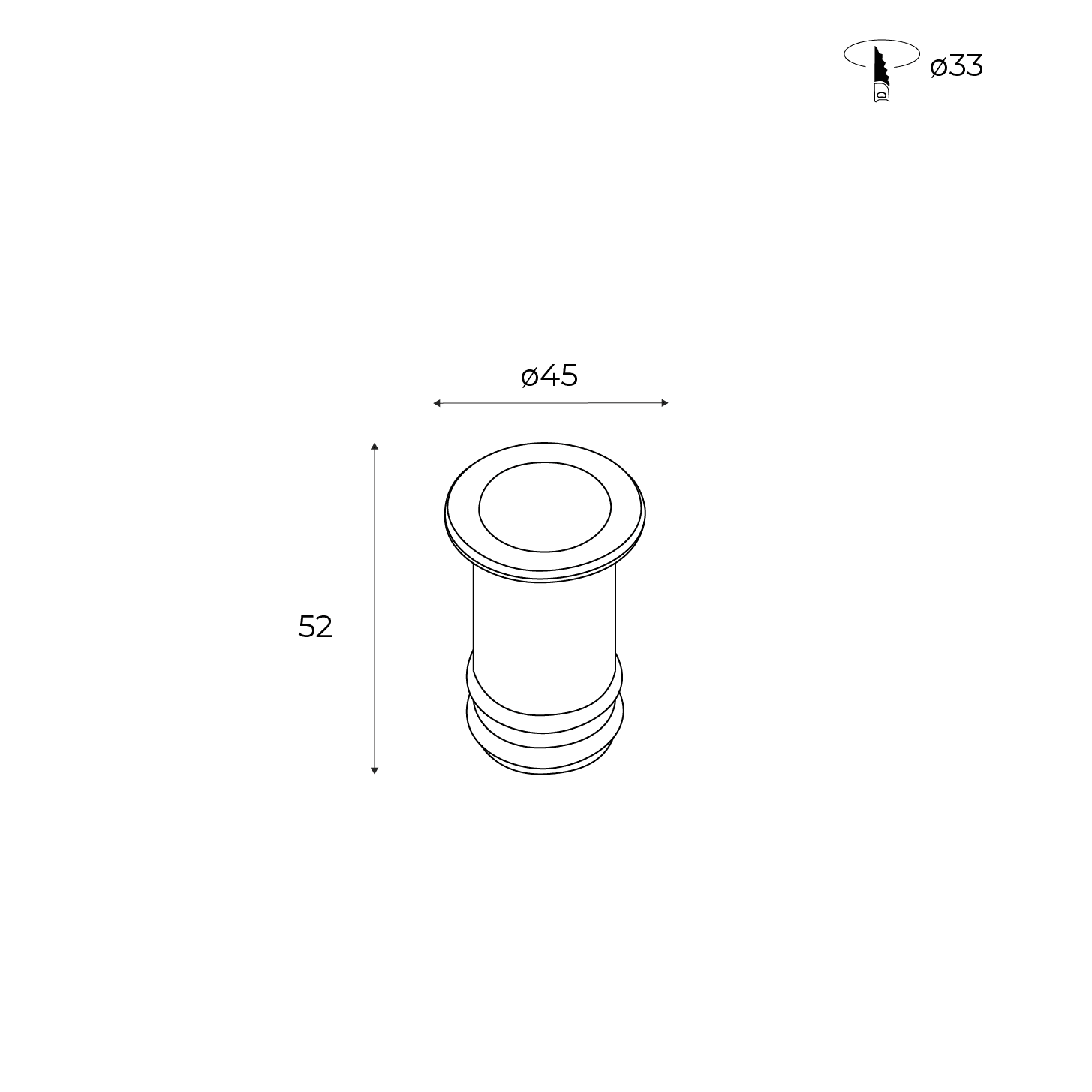

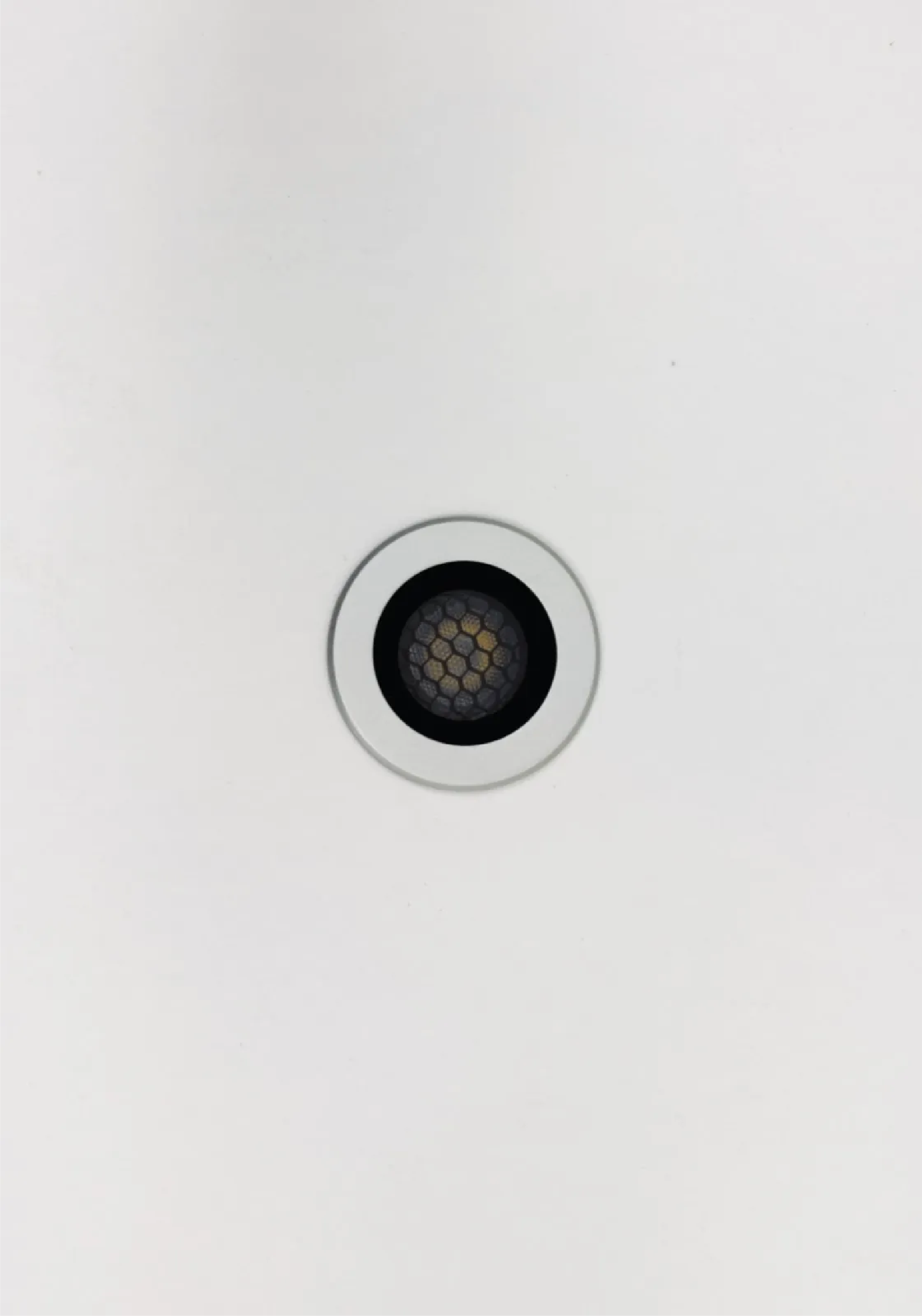

Zero Ø45-36º LED 2W 24Vdc (3000k 103lm/4000k 108lm)
Colour temperature
3000K
4000K
Anodized aluminium
900112036
900122036
Anodized aluminium
900112026 Honeycomb
900122026 Honeycomb

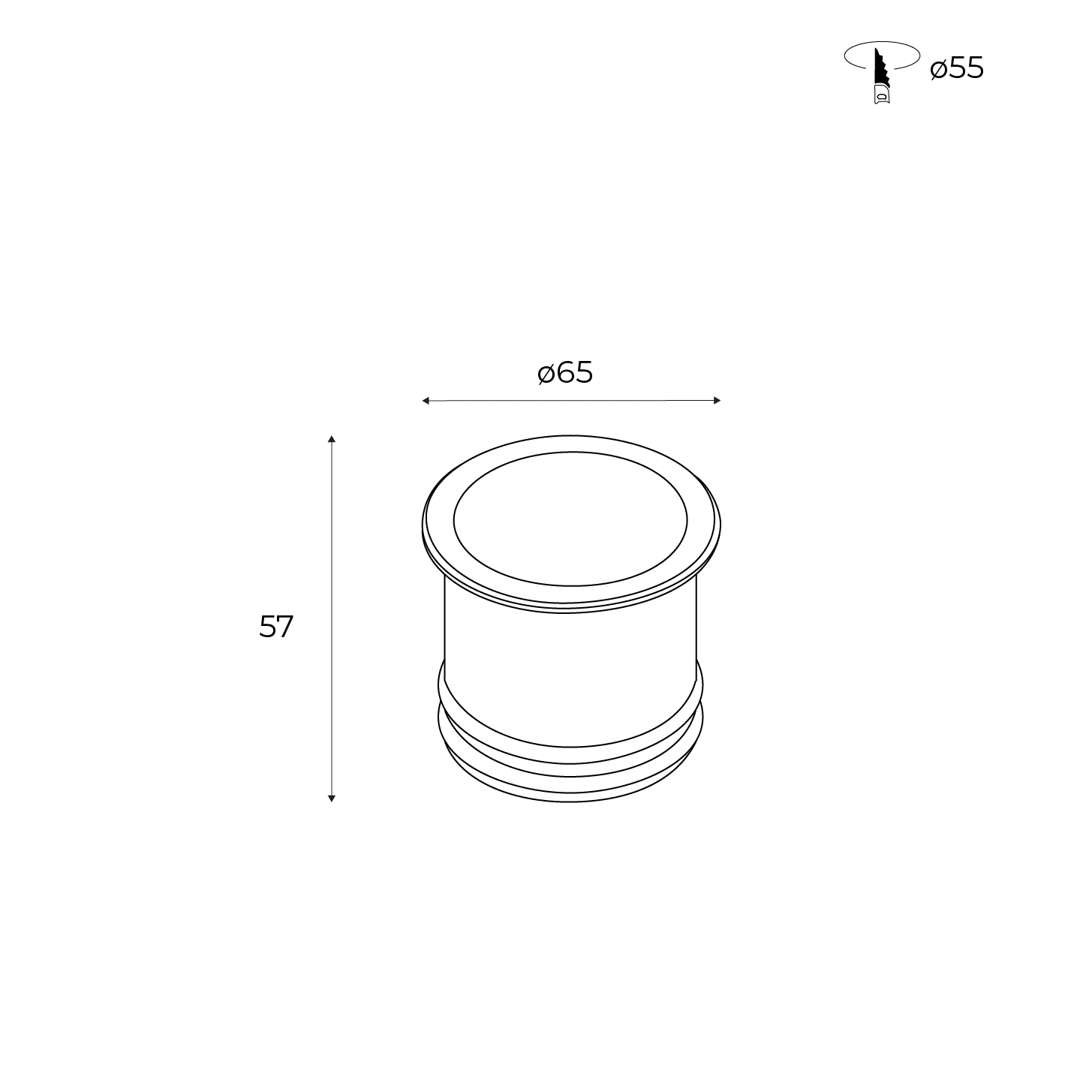

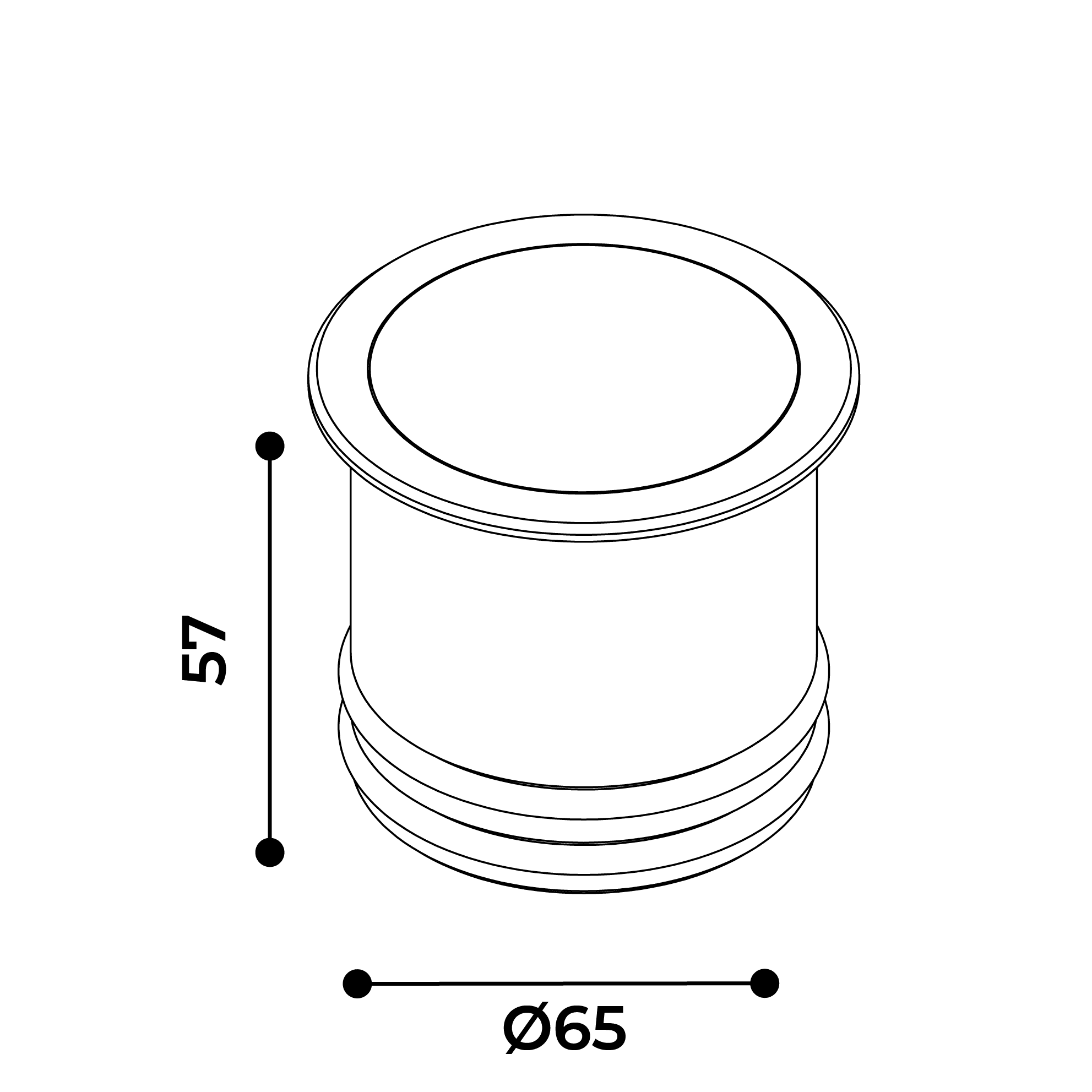

Zero Ø65-52º LED 6,3W 24Vdc (3000k 142lm/4000k 149lm)
Colour temperature
3000K
4000K
Anodized aluminium
900112076
900122076
Anodized aluminium
900112066 Honeycomb
900122066 Honeycomb

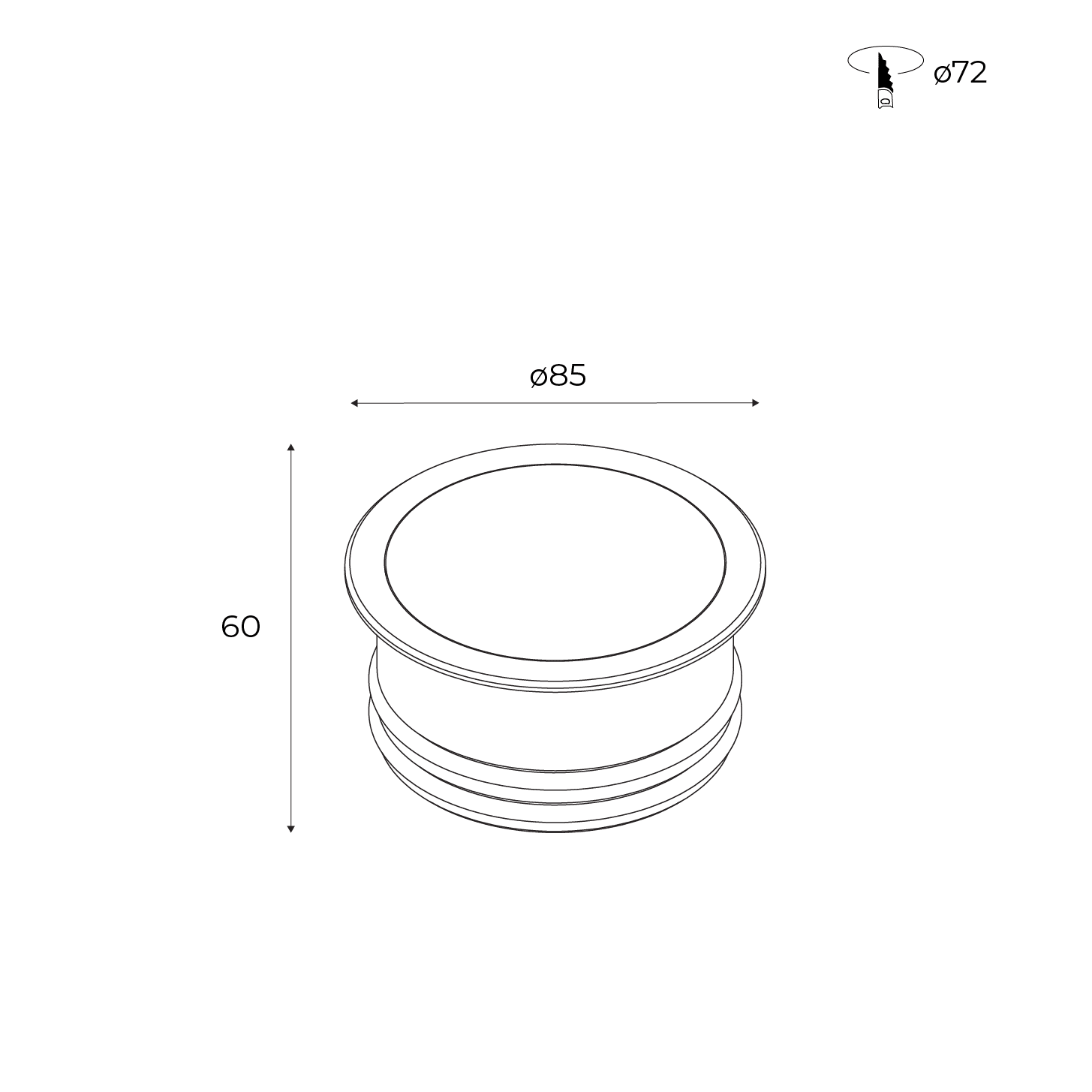

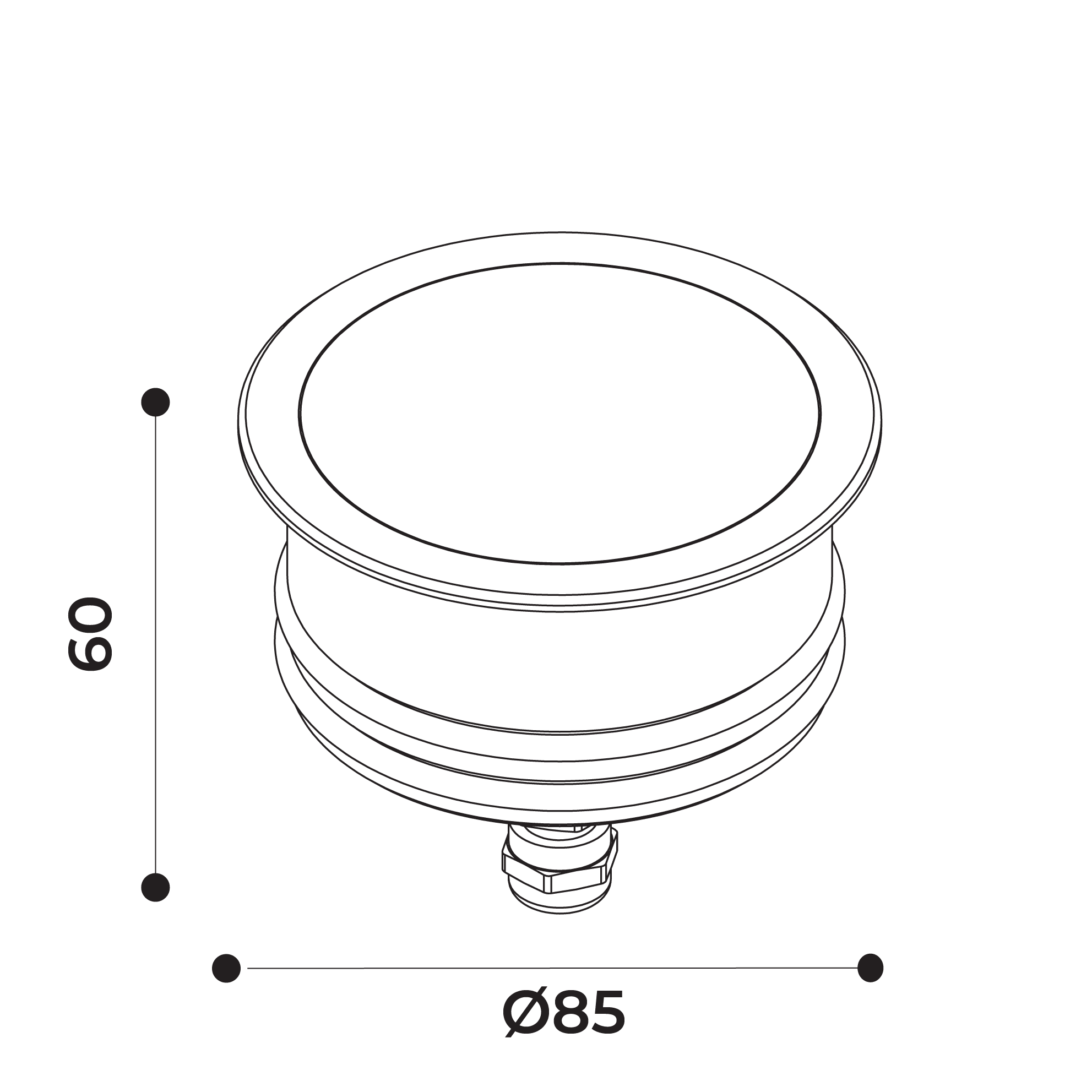

Zero Ø85 Diffused LED 5,5W 24V - 6,7W 230V (3000k 131lm/4000k 137lm)
Colour temperature
W
3000K
4000K
Anodized aluminium
24V
900112086
900122086
Anodized aluminium 230V
900111066
900121006
Accessories (Ø45-Ø65-Ø85)
Recessed Box Zero Ø45
9001

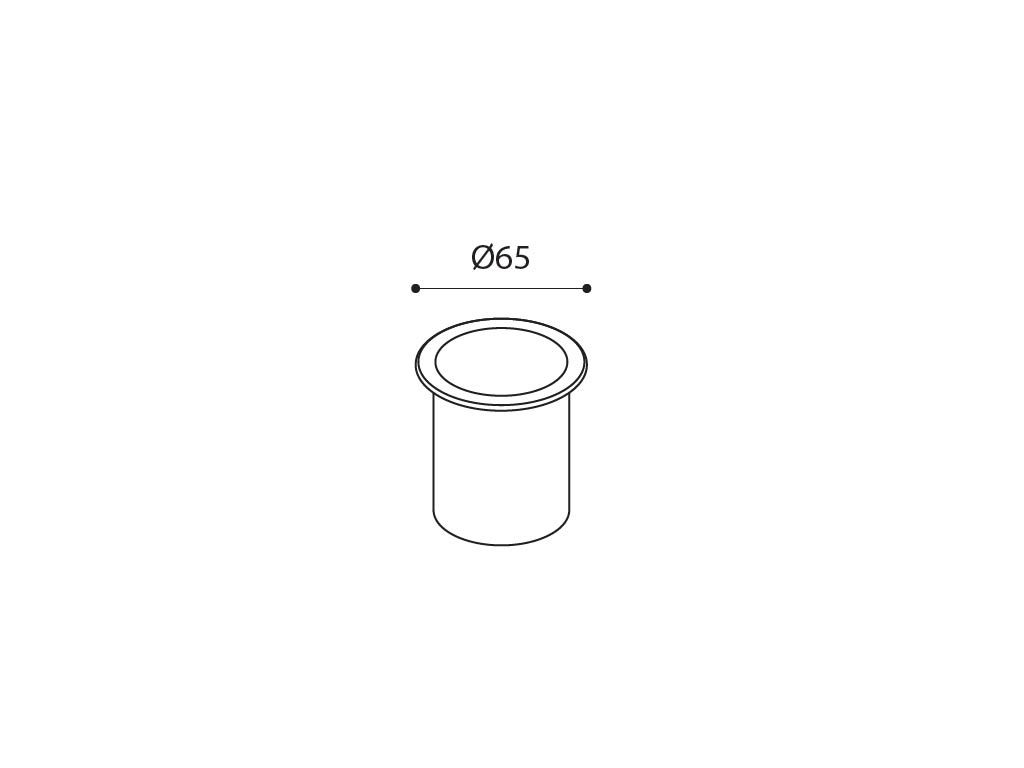

Recessed Box Zero Ø65
9002
Recessed Box Zero Ø85
9003
2 Way Terminal Block IP68
9004
3-4 Way Terminal Block IP68
9005
Remote Drivers
